135° Elbow Silicone Hose – Polyester, Nomex, Fluoro
Feature
- Inner: Silicone or Fluorosilicone.
- Cover: Silicone.
- Reinforce ply: 4 ply.
- Reinforce: Polyester / Aramid / Glass fiber.
- Color: Black/Red/Blue/Green/Yellow.
Applications:
- It can join your intake pipe to the throttle body assembly, air metering assembly, intercooler, or turbo inlet/outlet.
- Custom compressor, intercooler or inlet piping for turbo/supercharged car
- Custom cold air intake for no turbo car
- Replacement of all factory rubber parts
- These silicone parts can be used in trucks, recreational vehicles, boats, or anything else with an engine.
Table 1: 135° Elbow Silicone Hose Specification
| Part No. |
ID |
OD |
Max. Burst Pressure |
Working Temp. Range |
Leg Length |
| mm |
mm |
MPa |
°C |
mm |
| EH135-006 |
6 |
16 |
3.5 |
-40 - 200 |
100 |
| EH135-010 |
10 |
20 |
2.9 |
-40 - 200 |
100 |
| EH135-012 |
12 |
22 |
2.7 |
-40 - 200 |
100 |
| EH135-016 |
16 |
26 |
2.4 |
-40 - 200 |
100 |
| EH135-019 |
19 |
29 |
2.2 |
-40 - 200 |
100 |
| EH135-022 |
22 |
32 |
2.1 |
-40 - 200 |
100 |
| EH135-025 |
25 |
35 |
2.0 |
-40 - 200 |
100 |
| EH135-038 |
38 |
48 |
1.5 |
-40 - 200 |
100 |
| EH135-051 |
51 |
61 |
1.2 |
-40 - 200 |
100 |
| EH135-076 |
76 |
86 |
0.8 |
-40 - 200 |
100 |
| EH135-089 |
89 |
99 |
0.6 |
-40 - 200 |
100 |
| EH135-102 |
102 |
112 |
0.5 |
-40 - 200 |
100 |
135° Elbow Silicone Hose – Polyester Reinforced
135° elbow silicone hose, reinforced by polyester, is very effective for carrying air, water, coolant, or sprayed by small amount of oil mist. It is often be found in vehicle cooling systems like cold sides of intercooler air hoses and general industrial applications within the temperature of -50 °F to +170 °F.
Features
- Ideal working temperature: -50 °C to +170 °C
- Colors: black, red and blue
- 3–5 ply polyester reinforcement
- Silicone liner used as a barrier to isolate media
- UV and ozone-resistant
Table 2: Specification of 135° Elbow Silicone Hose – Polyester Reinforced
| Part No. |
Bore Size |
Leg Length |
Plies |
Wall |
| mm |
mm |
mm |
| E135-22 |
22 |
100 |
3 |
3.5 |
| E135-25 |
25 |
100 |
3 |
3.5 |
| E135-28 |
28 |
100 |
3 |
3.5 |
| E135-30 |
30 |
100 |
3 |
3.5 |
| E135-32 |
32 |
100 |
3 |
3.5 |
| E135-35 |
35 |
100 |
3 |
3.5 |
| E135-38 |
38 |
100 |
3 |
3.5 |
| E135-51 |
51 |
100 |
4 |
5 |
| E135-54 |
54 |
100 |
4 |
5 |
| E135-57 |
57 |
100 |
4 |
5 |
| E135-60 |
60 |
125 |
4 |
5 |
| E135-63 |
63 |
125 |
4 |
5 |
| E135-70 |
70 |
125 |
4 |
5 |
| E135-76 |
76 |
125 |
4 |
5 |
135° Elbow Silicone Hose – Nomex Reinforced
Nomex is a flame resistant, high heat resistant, and chemical resistant fiber. At exceptionally high temperatures, it still maintains its properties without excessive softness. It is particularly suitable for turbo boost hoses, hot-side intercooler hoses, and EGR connectors.
Features
- Working temperature: –50 °C to +250 °C
- Nomex reinforced: 3–5 ply
- UV and ozone resistant
- Silicone hose creates a barrier to isolate media
Table3: Specification of 135° Elbow Silicone Hose – Nomex Reinforced
| Part No. |
Internal Diameter |
Leg Length |
Plies |
Wall |
Color |
| mm |
inch |
mm |
mm |
| E135-13 HT |
13 |
1/2" |
102 × 102 |
3 |
4 |
Black |
| E135-16 HT |
16 |
5/8" |
102 × 102 |
3 |
4 |
Black |
| E135-19 HT |
19 |
3/4" |
102 × 102 |
3 |
4 |
Black |
| E135-25 HT |
25 |
1" |
102 × 102 |
3 |
4 |
Black |
| E135-32 HT |
32 |
1-1/4" |
102 × 102 |
3 |
4 |
Black |
| E135-35 HT |
35 |
1-3/8" |
102 × 102 |
3 |
4 |
Black |
| E135-38 HT |
38 |
1-1/2" |
102 × 102 |
3 |
4 |
Black |
| E135-51 HT |
51 |
2" |
102 × 102 |
4 |
5 |
Black |
| E135-60 HT |
60 |
2-3/8" |
102 × 102 |
4 |
5 |
Black |
| E135-63 HT |
63 |
2-1/2" |
102 × 102 |
4 |
5 |
Black |
| E135-70 HT |
70 |
2-3/4" |
102 × 102 |
4 |
5 |
Black |
| E135-76 HT |
76 |
3" |
102 × 102 |
4 |
5 |
Black |
135° Elbow Silicone Hose – Fluoro Lined
Fluoro lined silicone hoses not only withstand extreme temperatures, generally from -55 °C to +170 °C, but also are quite compatible with hydrocarbon liquids, such as petrol, diesel, and other oils. It is often used in turbochargers and intercooler hoses that meet Euro 3 and 4 emission levels.
In addition, a high concentration of 80/20 Fluoro is used and the Fluoro liner is 1 mm thick. Some manufacturers dilute the material just to lower cost and make the liner thinner. This will not achieve the desired effects and the hose will be corroded quickly.
Features:
- Working temperature: -55 °C to 250 °C
- Colors: black, red, blue
- Fluoro lined for contacting with oil
- Polyester fiber reinforced 3 to 4 plies
- Especially used in turbocharger and intercooler hoses
- Low permeation
- Remark: Fluoro lined silicone hoses are available for contacting with oils or oil mists.
Table 4: Specification of 135° Elbow Silicone Hose – Fluoro Lined
| Part No. |
Internal Diameter |
Leg Length |
Plies |
Wall |
| mm |
inch |
mm |
mm |
| E135-13 FL |
13 |
1/2" |
102 × 102 |
3 |
4 |
| E135-16 FL |
16 |
5/8" |
102 × 102 |
3 |
4 |
| E135-19 FL |
19 |
3/4" |
102 × 102 |
3 |
4 |
| E135-25 FL |
25 |
1" |
102 × 102 |
3 |
4 |
| E135-32 FL |
32 |
1-1/4" |
102 × 102 |
3 |
4 |
| E135-35 FL |
35 |
1-3/8" |
102 × 102 |
3 |
4 |
| E135-38 FL |
38 |
1-1/2" |
102 × 102 |
3 |
4 |

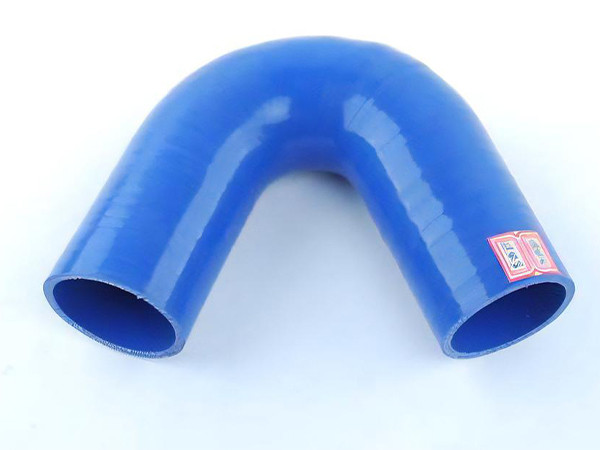

Blue 135° silicone elbow hoses

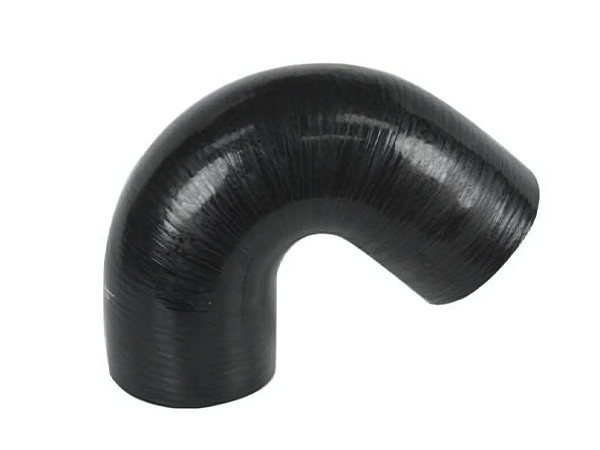

Black 135° silicone elbow hose

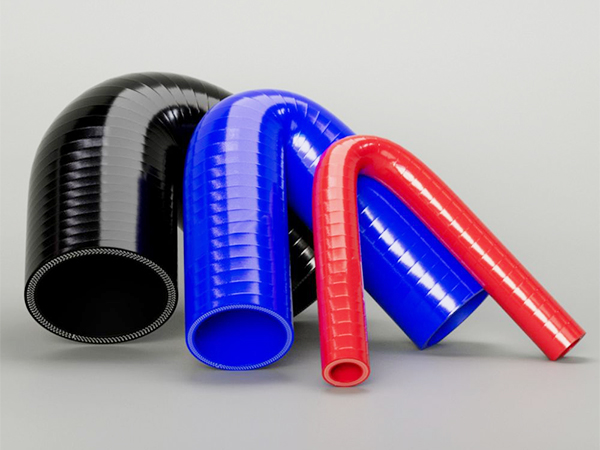

Colorful 135° silicone elbow hoses
