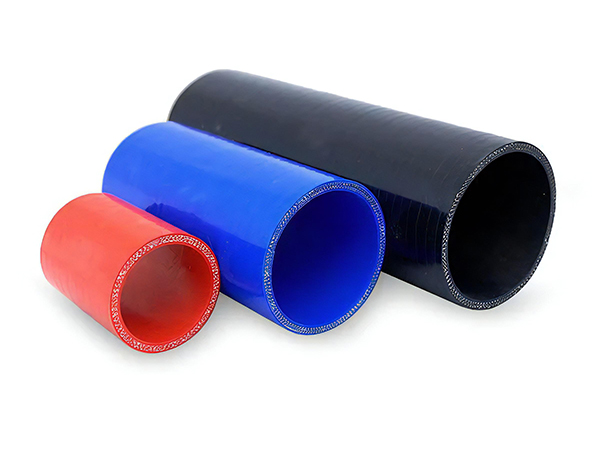

Straight Silicone Coupling Hose – Premium Polyester Reinforced
Straight silicone coupling hose is made of high flame resistance silicone rubber reinforced by 3 to 5 layers of premium polyester fabric. This straight coupling is engineered for extreme temperatures and various pressure ranges. From -55 °C to +170 °C, silicone coupling operates well without excessive softness at high temperatures or becoming stiff and rigid at lower temperatures.
Hose coupling is often used to join two rigid pipes to prevent the connections between them from breaking or breaking your hard pipes or other related equipment.
Specifications:
- Inner: silicone or fluorosilicone.
- Cover: silicone.
- Reinforce ply: 4 ply.
- Reinforce: polyester/aramid/glass fiber..

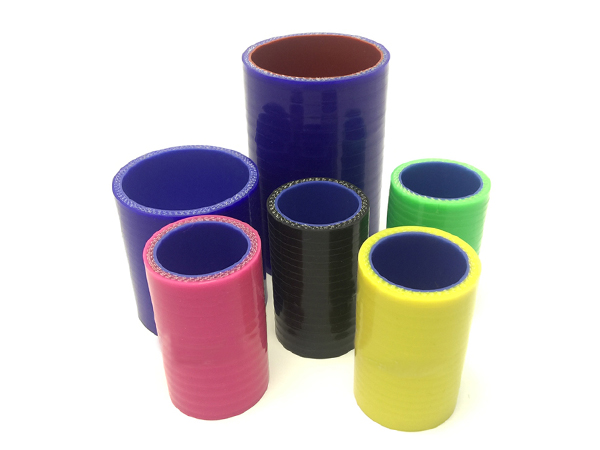

- Color: Black/Red/Blue/Green/Yellow.
- quality: industrial grade, and food grade.
- surface: smooth.
- hardness: 40, 50, 60, 70±5 shore A.
- elongation: 380%.
- density: 1.25g/cm3.
- tear strength: 26N/mm.
- Application: widely used in the home, decoration, medical, and food industries.
Silicone Hose Features:
- Translucent natural silicone tube color for visual contact with the flow of liquid.
- Resilient, stretchable silicon tubing material, and resistant to compression set.
- Flexible silicone hoses are odorless, tasteless, and inert.
- Good electrical and weatherability properties — silicone hose resists U.V., ozone, gases, and moisture.
Silicone Rubber Hose Typical Application
Straight silicone coupling hose can be found in high performance racing vehicles, commercial trucks, buses, marine, agricultural, off-highway vehicles, turbo diesel, and other manufacturing industries.
- Coolant hose for individual machinery and equipments.
- Pipes and connecting hose for food and beverage processing.
- Medical equipments.
- Chemical and adhesive filling systems.
- Thin will permeable hose for diffusion membranes.
- Alternative hardness for hose wall and top coating.
- Special elastomeric formulation for custom applications.
Note: Only polyester reinforced type and special orders for Nomex reinforced or Fluoro lined are provided. Any custom lengths and diameters can be served. Black, red, and blue are available.
Table 1: Straight Silicone Coupling Hose - Polyester Reinforced Specification
| Part No. |
Internal Diameter |
Length |
Plies |
Wall |
| mm |
inch |
mm |
mm |
| CP19-76 |
19 |
3/4" |
76 |
3 |
4 |
| CP22-76 |
22 |
7/8" |
76 |
3 |
4 |
| CP25-76 |
25 |
1" |
76 |
3 |
4 |
| CP28-76 |
28 |
1-1/8" |
76 |
3 |
4 |
| CP32-76 |
32 |
1-1/4" |
76 |
3 |
4 |
| CP35-76 |
35 |
1-3/8" |
76 |
3 |
4 |
| CP38-76 |
38 |
1-1/2" |
76 |
3 |
4 |
| CP41-76 |
41 |
1-5/8" |
76 |
3 |
4 |
| CP44-76 |
44 |
1-3/4" |
76 |
3 |
4 |
| CP48-76 |
48 |
1-7/8" |
76 |
3 |
4 |
| CP51-76 |
51 |
2" |
76 |
4 |
5 |
| CP54-76 |
54 |
2-1/8" |
76 |
4 |
5 |
| CP57-76 |
57 |
2-1/4" |
76 |
4 |
5 |
| CP60-76 |
61 |
2-3/8" |
76 |
4 |
5 |
| CP63-76 |
63 |
2-1/2" |
76 |
4 |
5 |
| CP67-76 |
67 |
2-5/8" |
76 |
4 |
5 |
| CP70-76 |
70 |
2-3/4" |
76 |
4 |
5 |
| CP76-76 |
76 |
3" |
76 |
4 |
5 |
| CP80-76 |
80 |
3-1/8" |
76 |
4 |
5 |
| CP83-76 |
83 |
3-1/4" |
76 |
4 |
5 |
| CP89-76 |
89 |
3-1/2" |
76 |
4 |
5 |
| CP102-100 |
103 |
4" |
100 |
5 |
6 |
| CP127-100 |
127 |
5" |
100 |
5 |
6 |
| CP152-100 |
152 |
6" |
100 |
5 |
6 |
Remarks: Straight silicone coupling hose is not compatible with fuel or oil. Straight silicone coupling hose is compatible with water and anti-freeze fluids like coolant.
